Bluetooth Adaptor

I made these bluetooth adaptors in order to make wireless communication between my embedded applications and computer.

It also helps to debug my robots for some circumstances.

The reason I made 2 is because each one have difference current consumption and the one with lower current consumption is used at some power sensitive applications.

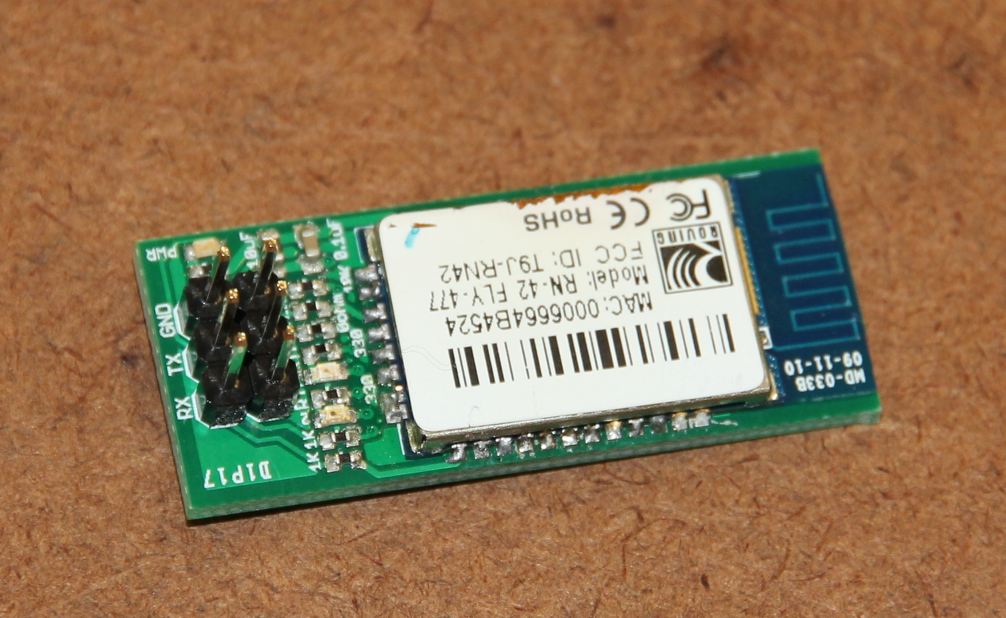

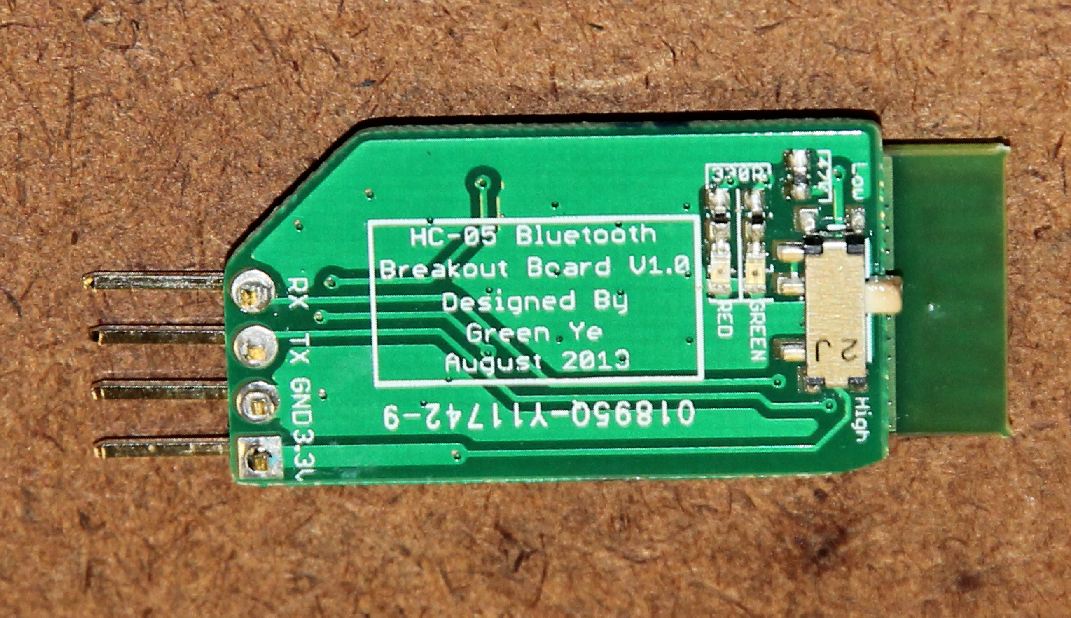

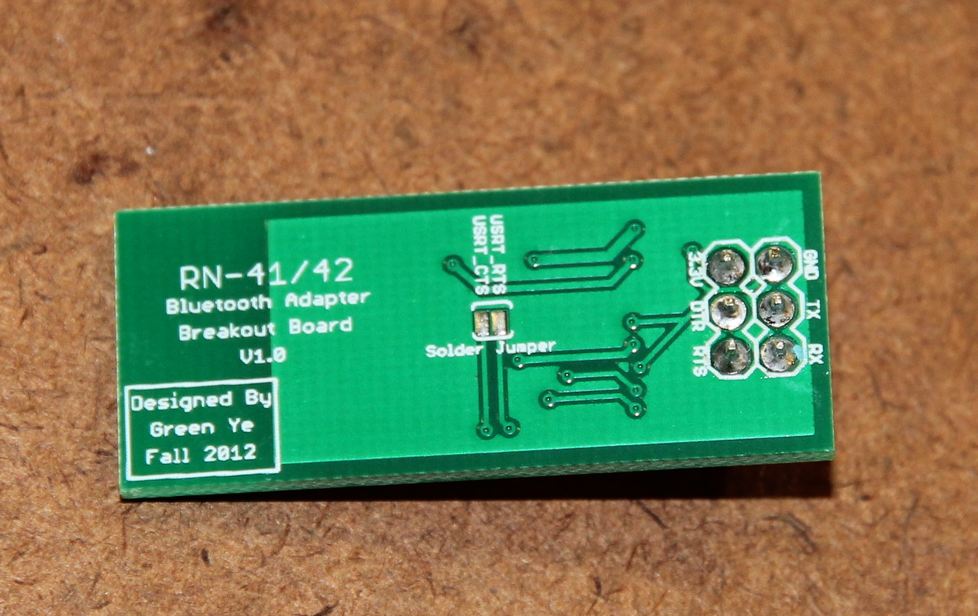

RN-42 HC-05
RN-42 Breakout board Schematic HC-05 Breakout board Schematic
