2 Cell Li/Li-Po Battery Charger

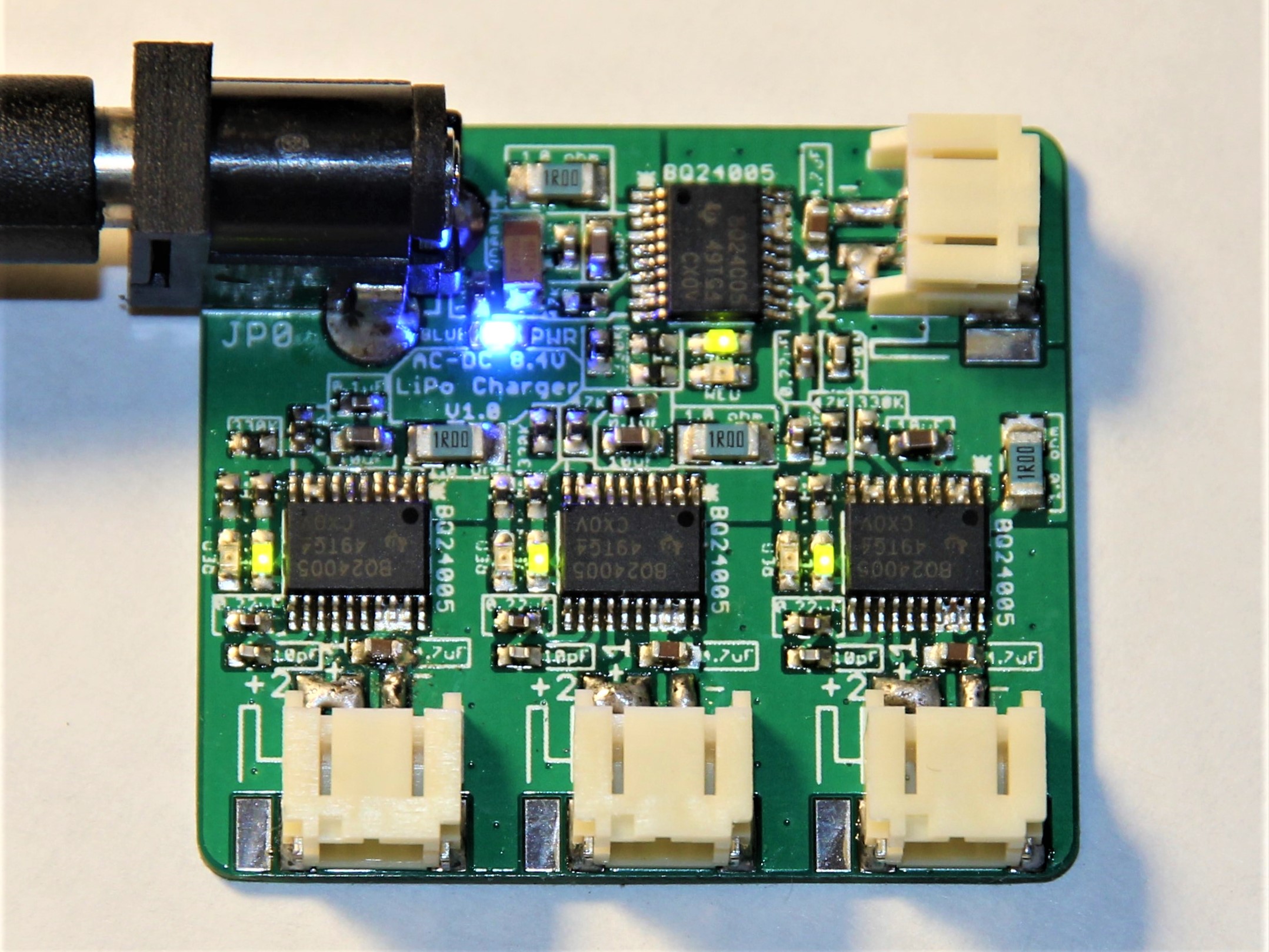

This charger is designed to be ultra portable and capable of charging up to four of 2 cell serial(7.4V) Li/Li-Po battery packs at each time. The charger board is powered by a conventional 5.5mmx2.1mm con-jack 9V 1A AC-DC adapter. The overall size is still pretty small and very convinient to carry around.

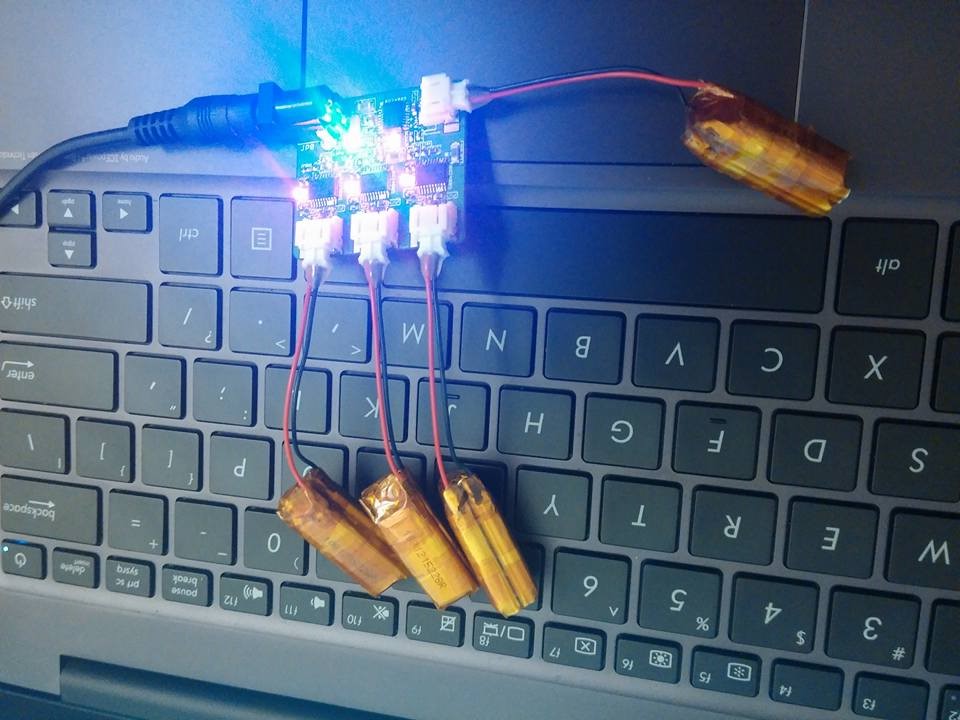

Charging up to 4 battery packs at a time

--------------  Design Phase  -------------
Gerber View

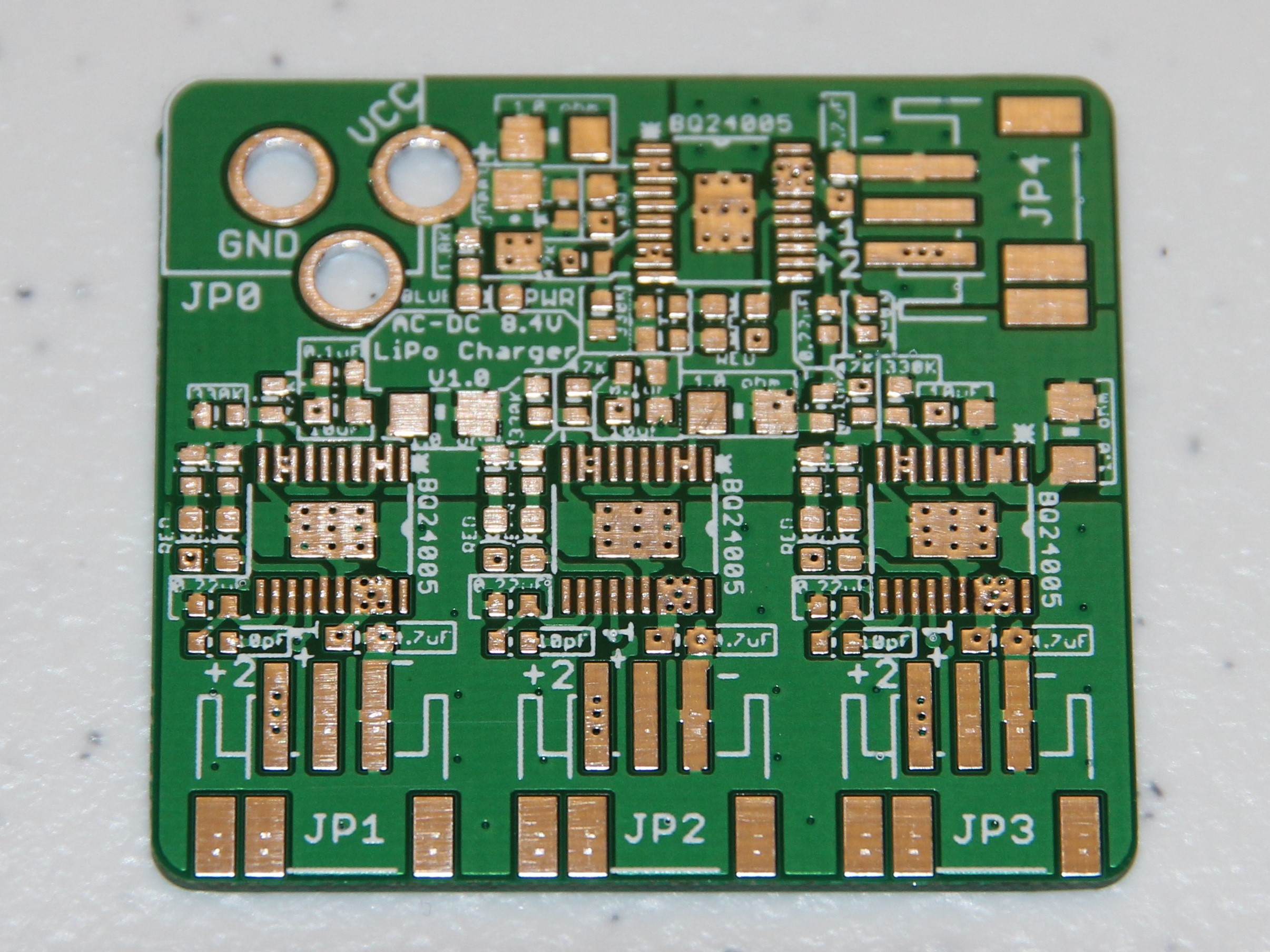

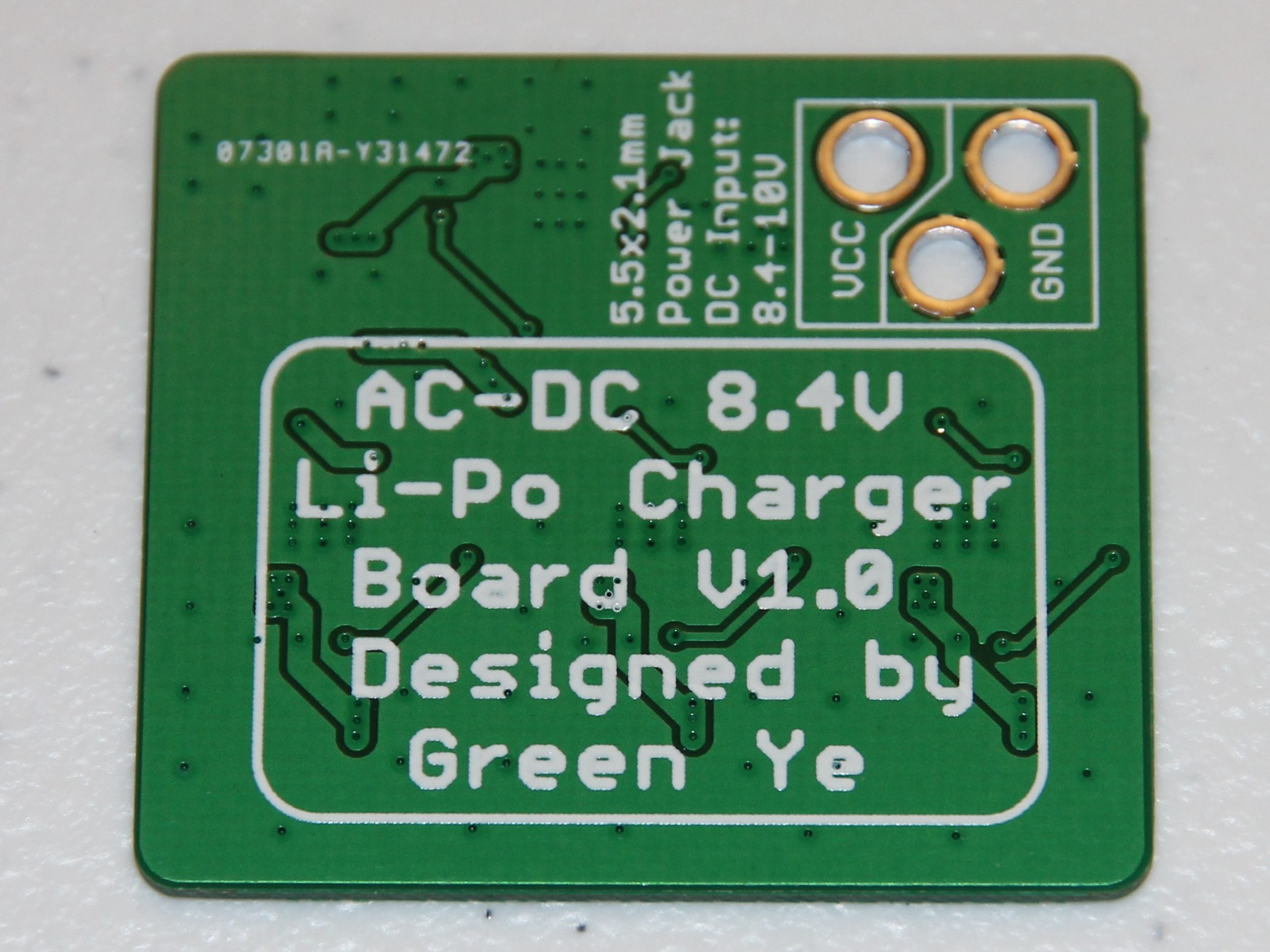

 PCB Front  PCB Back
