1 Cell Li-Po Charger
|
I designed 1 to 2 lipo charger in order to be able to charge 2 lipo batteries at same time with one USB input. each charger module is capable to charge either at 100mah mode or 500mah based on the setting on a slide switch. |
|
|
|

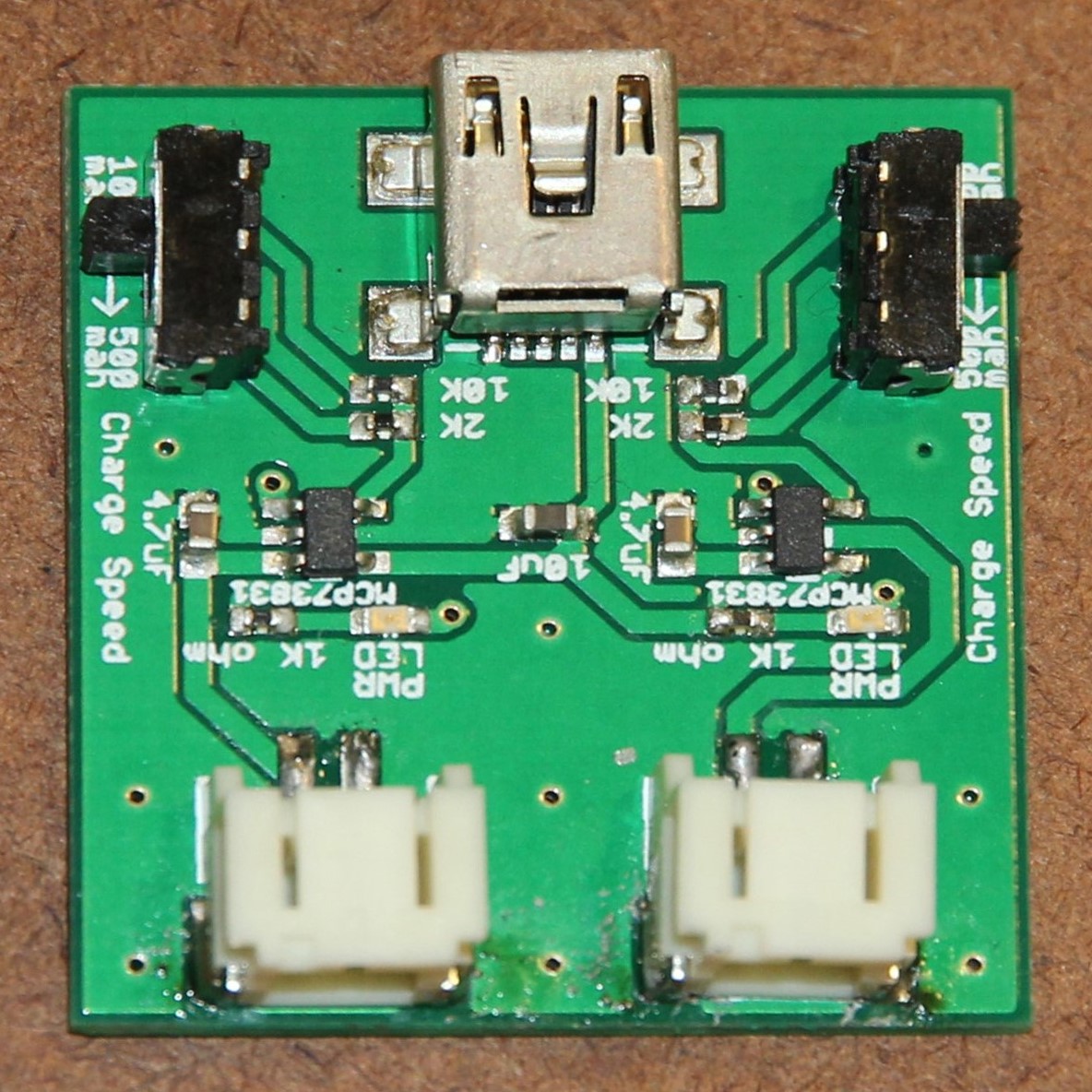

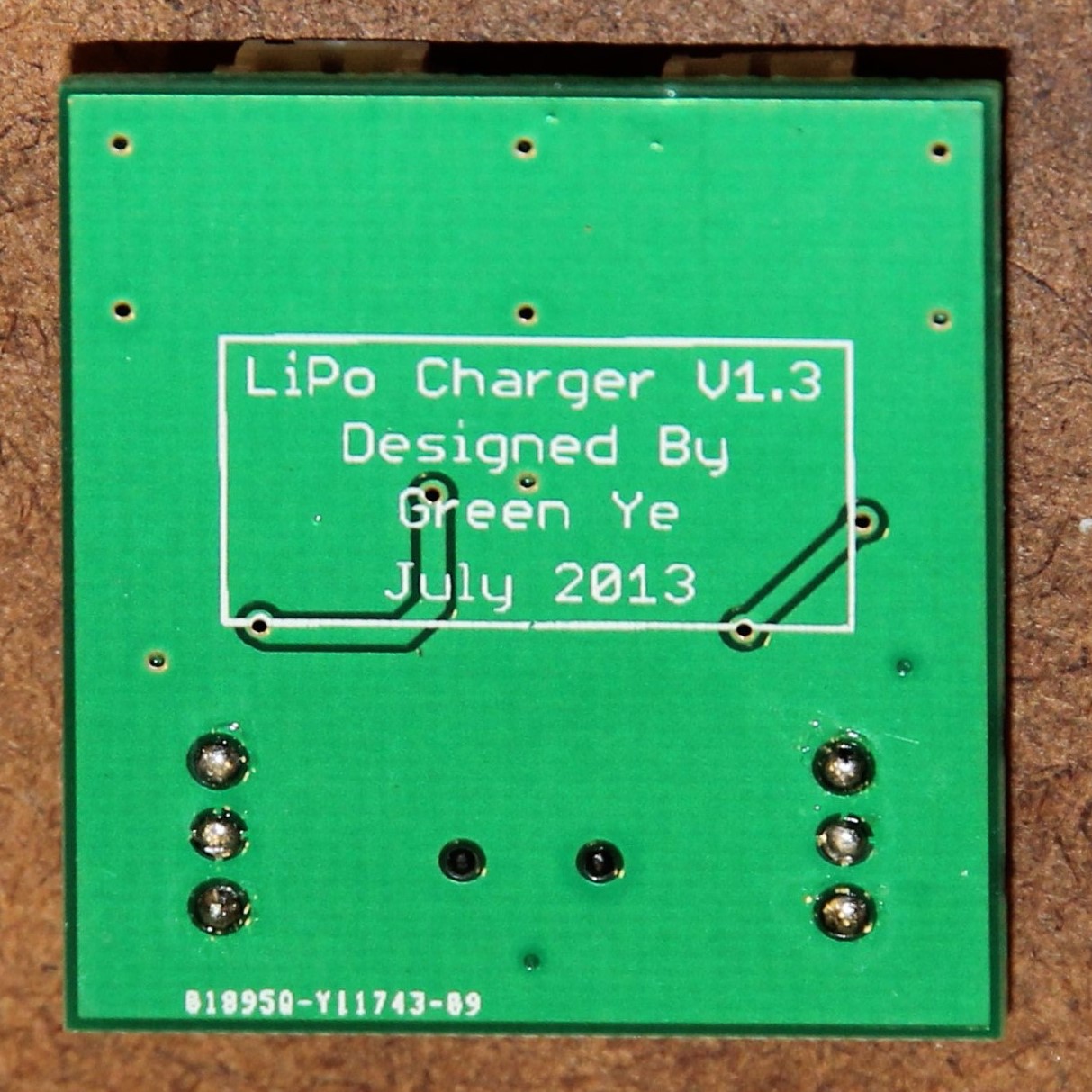

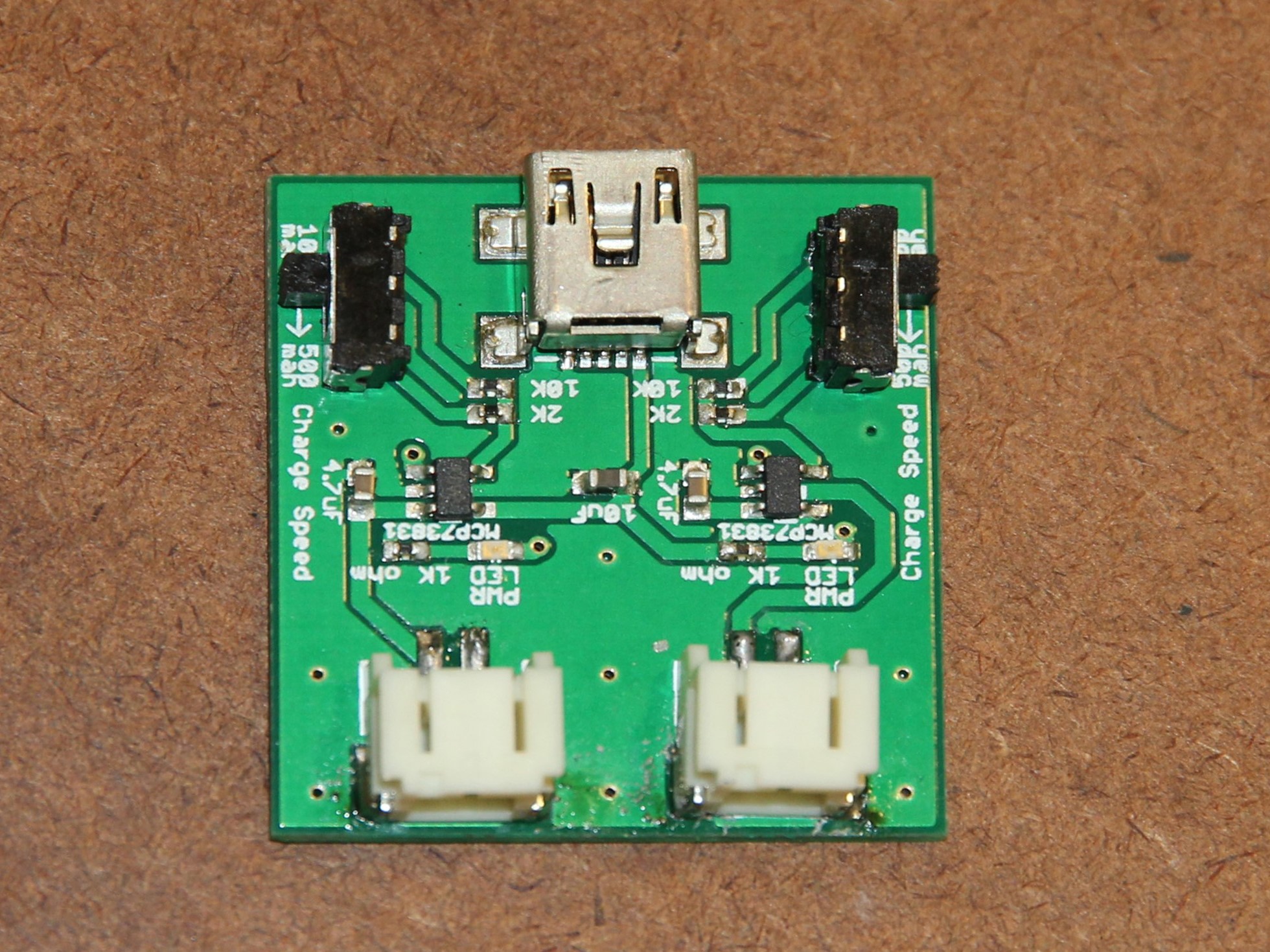

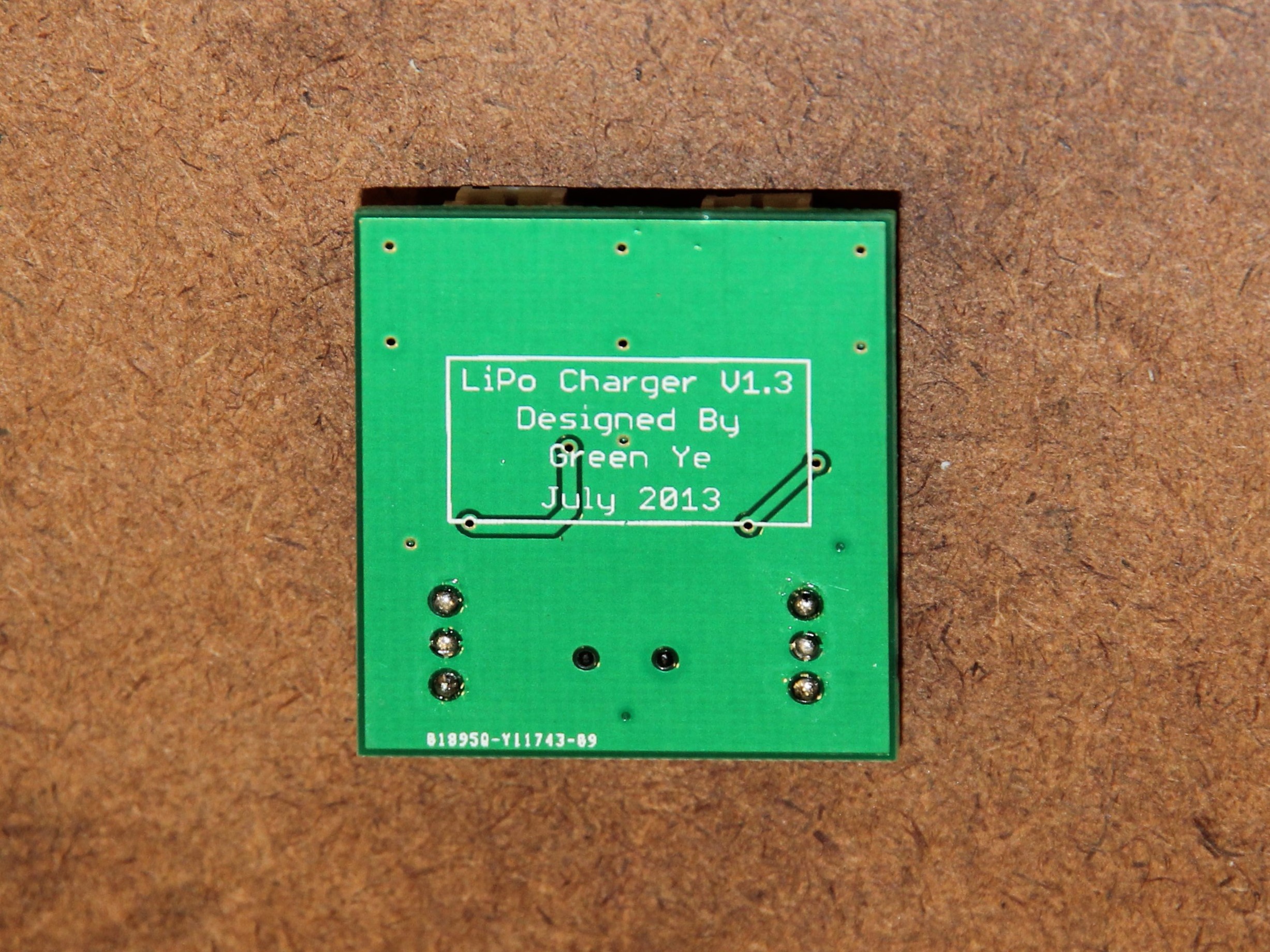

| Front | Back |
| Due to the simplicity of the design, this charger is also widely used in UCLA IEEE's Micromouse program |

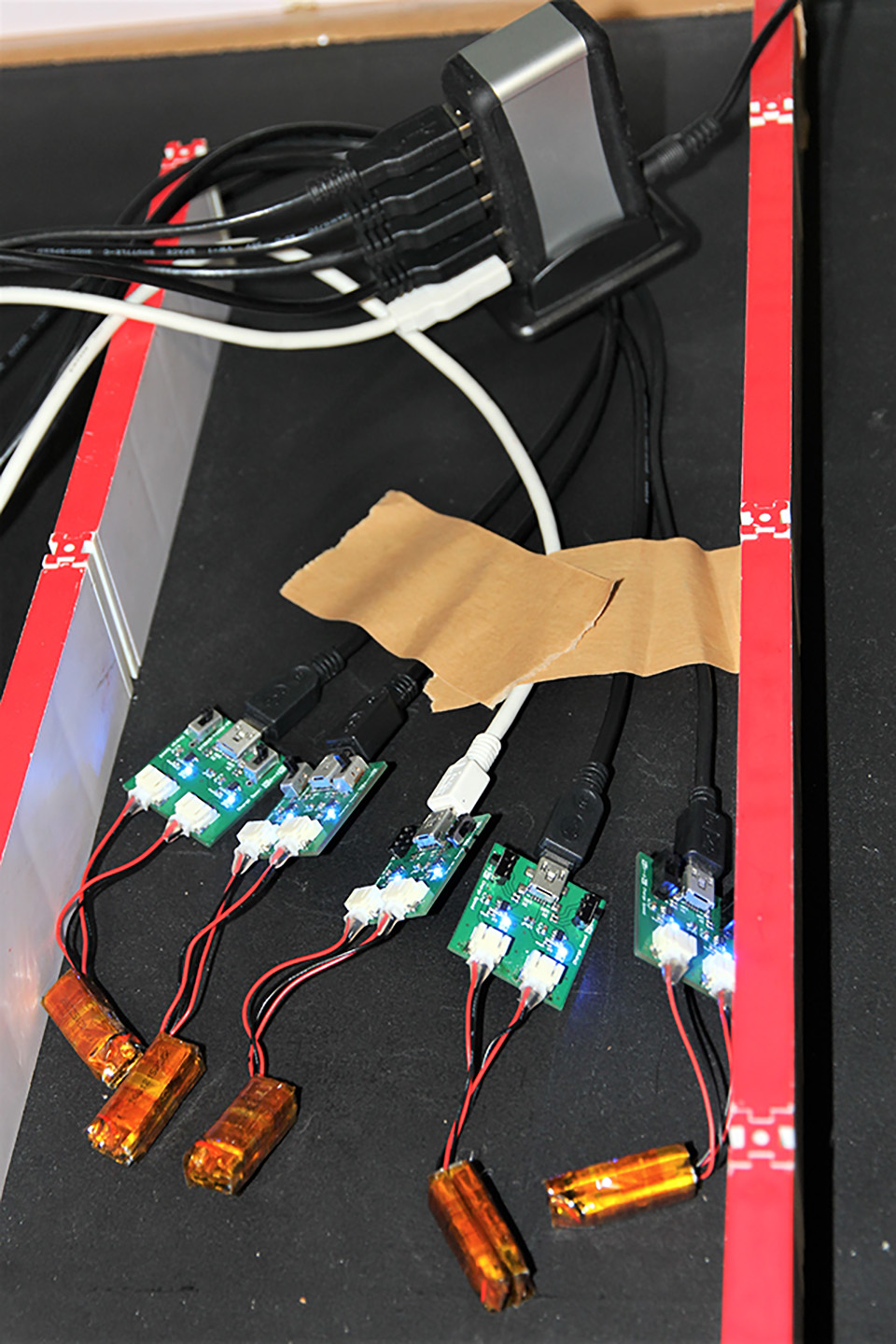

Charging multiple batteries  |
