IR Test Board
| This board was designed to simplify the process of designing the profiles of IR emitters and receivers at different conditions(such as time, current, distance range, etc.) The board is used associated with my all in one STM32F4 Dev. board. Both IR emitter current and IR receiver current are adjustable. |
|
|
|

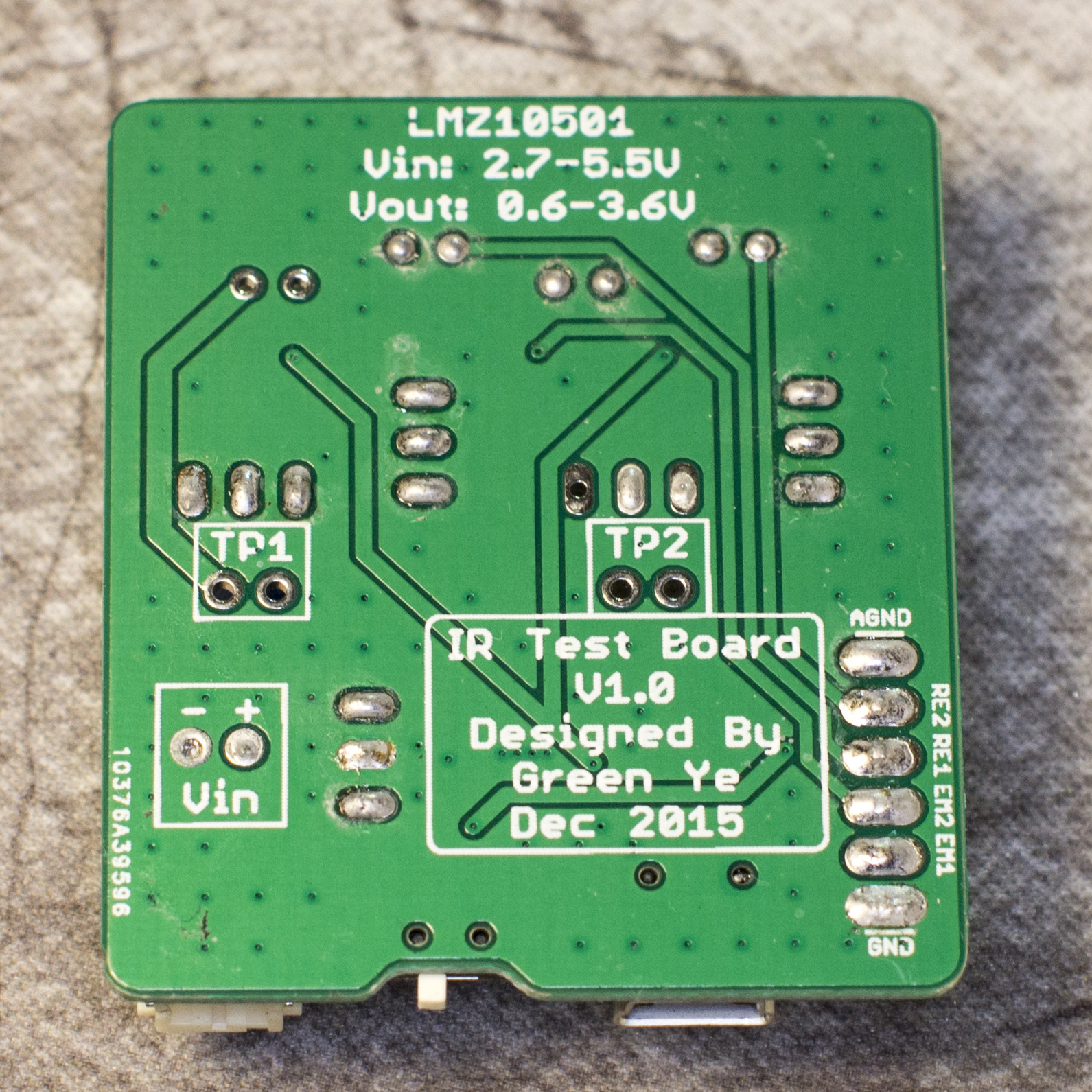

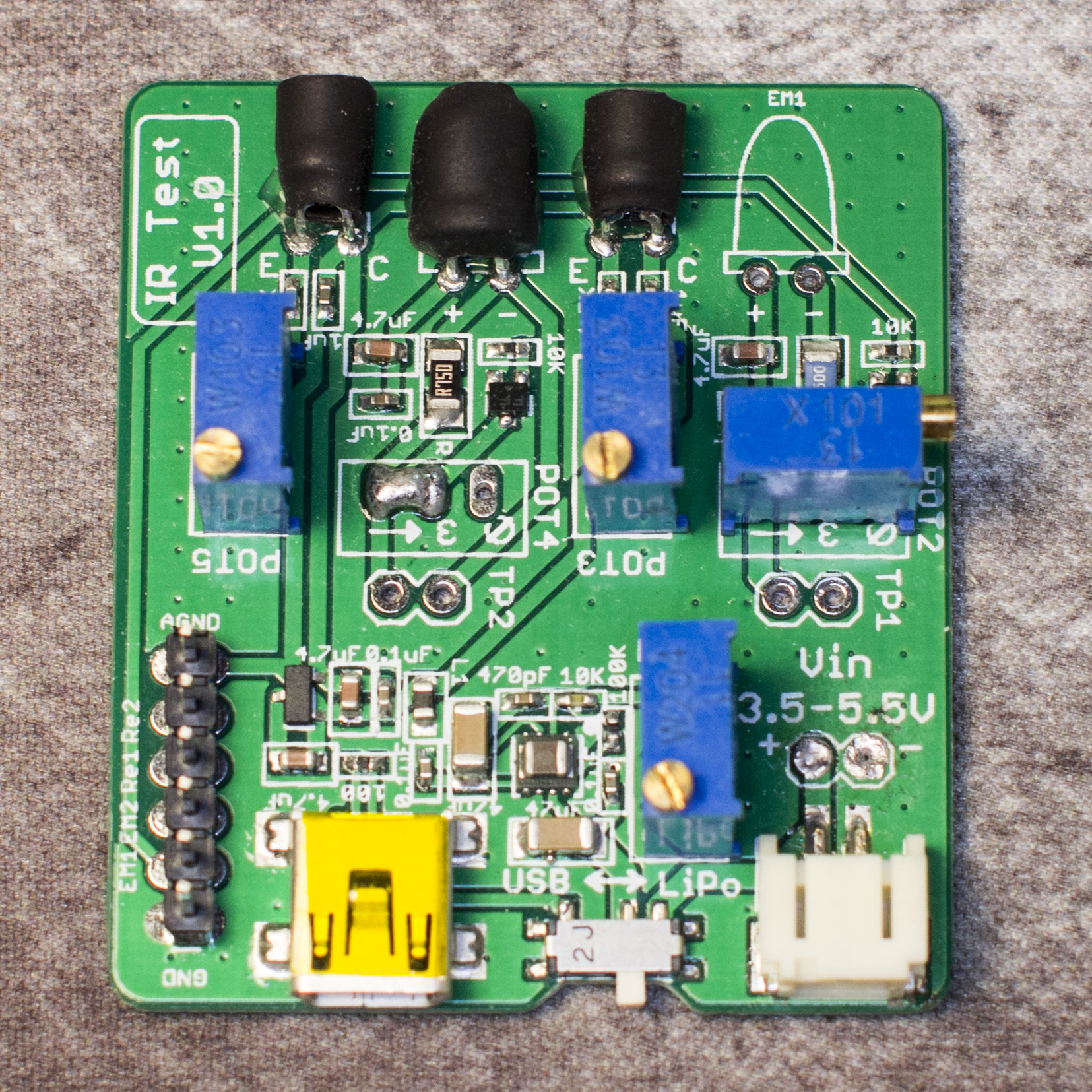

| Front | Back |
Application:

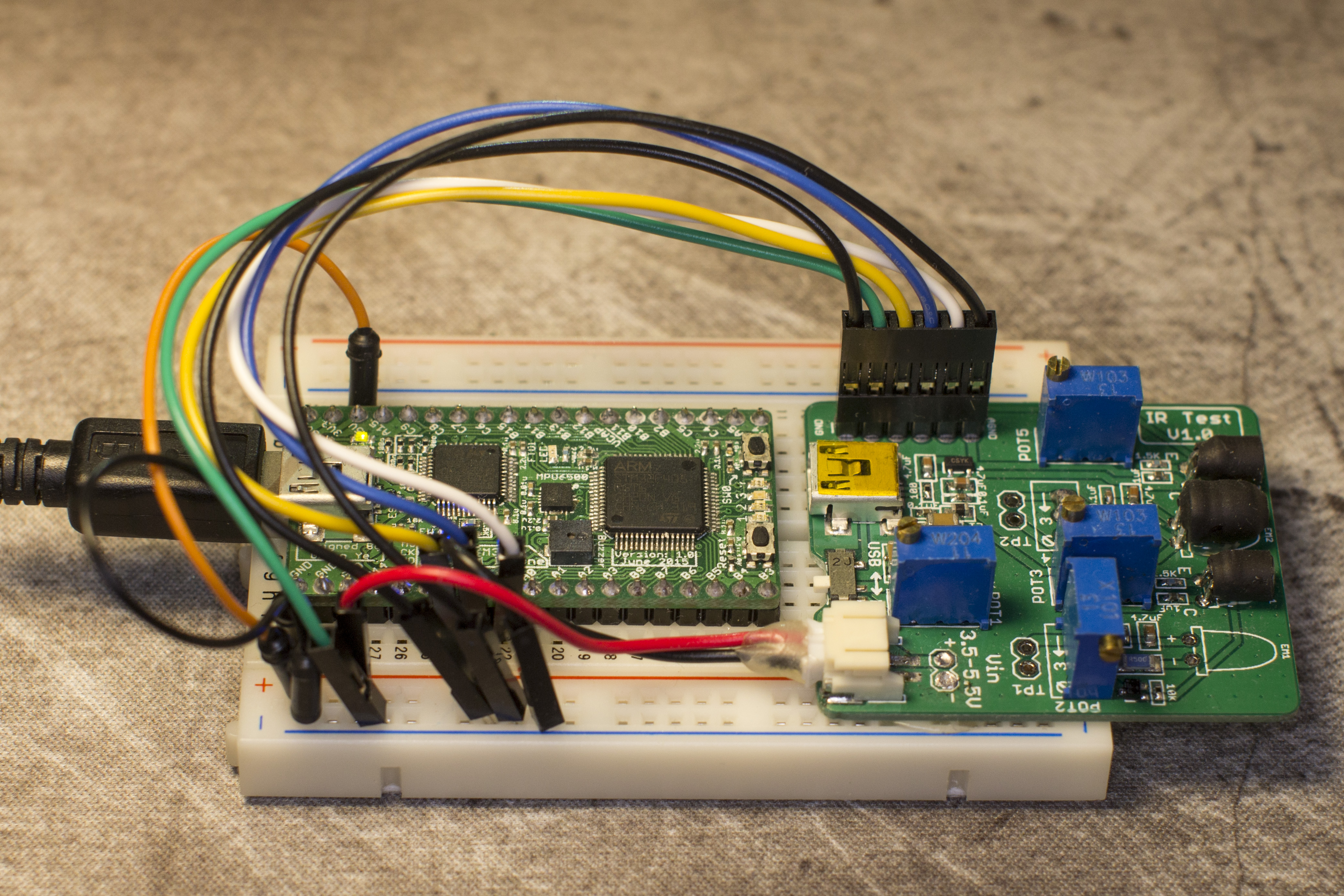

Mimimized the cable connection with MCU

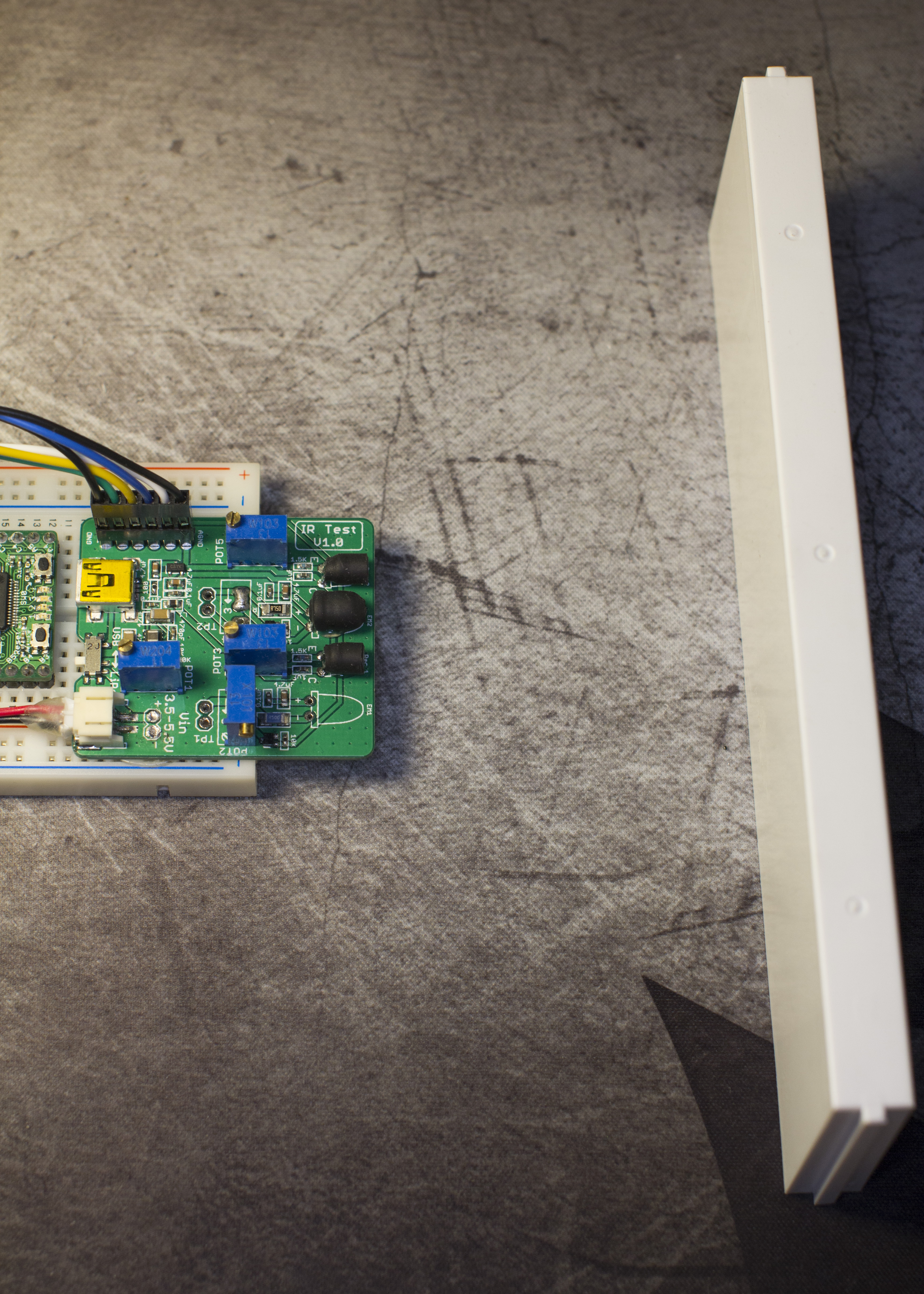

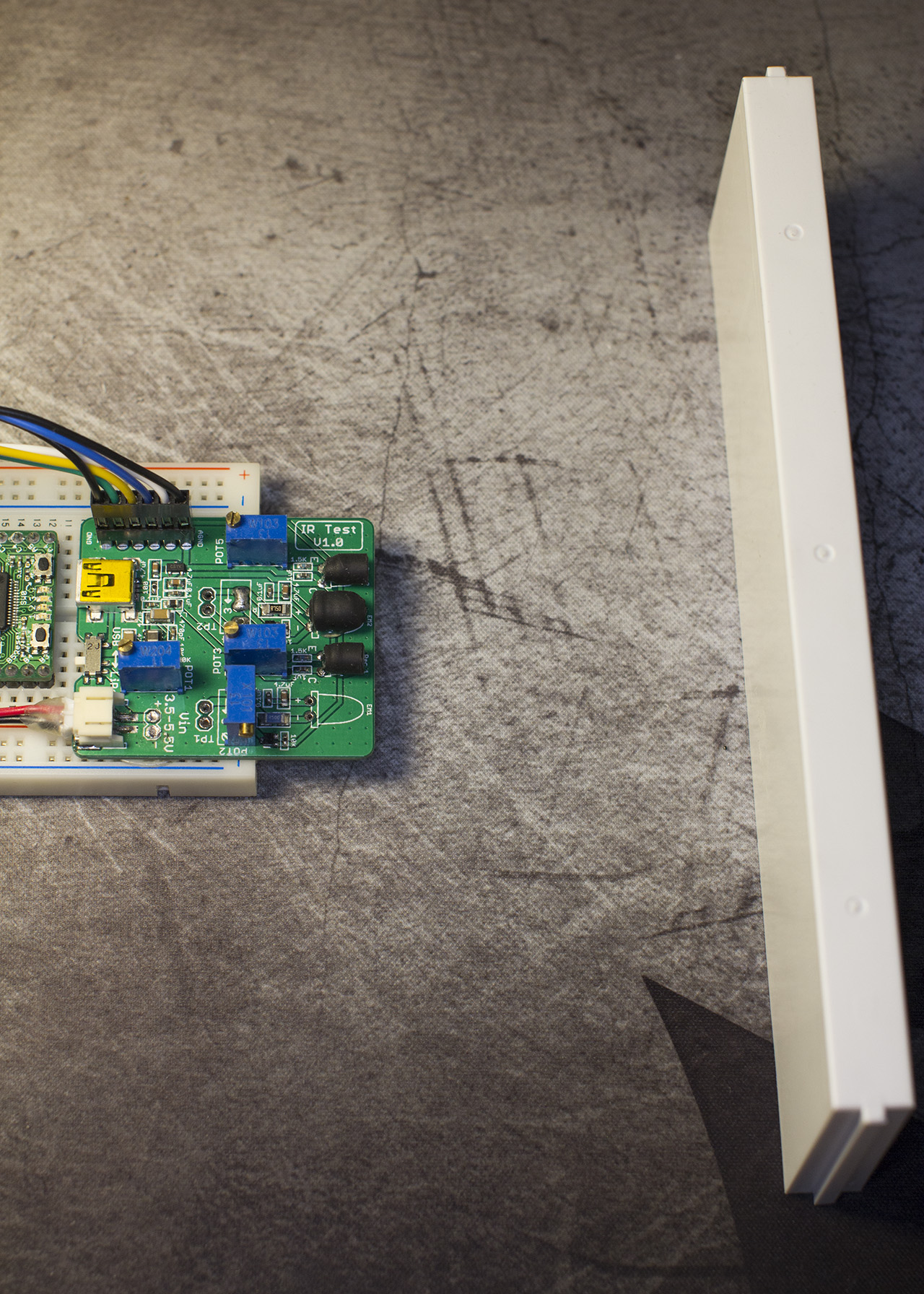

Test distance with a wall
| The board made my IR sensor testing experience much more confortable then before |
