STM32 Pro Mini

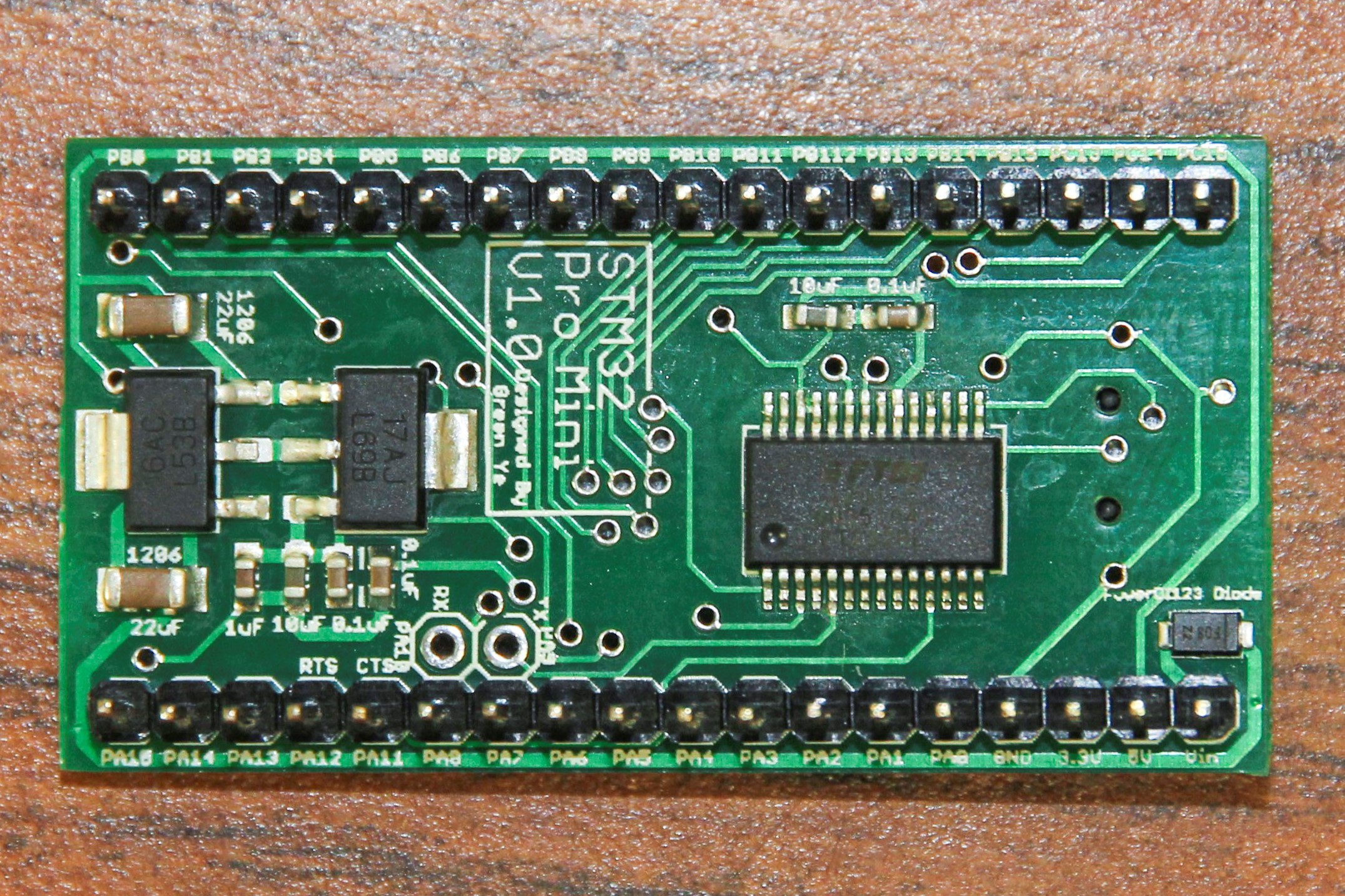

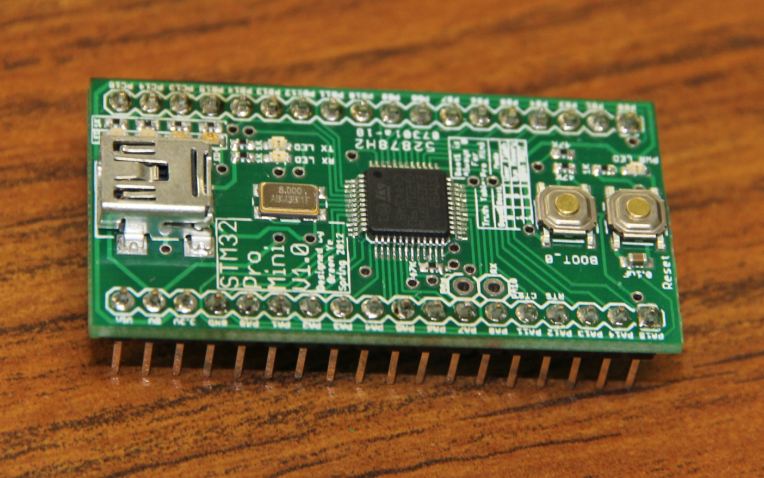

Story Behind it: Before I finish my Micromouse project this year, I realized that I need a reliable Dev board for me to practice on STM32 in order to achieve more functionalities. Specs: - built in serial to converter, direct USB out - built 8MHz external crystal, Pro Mini will PPL to 72MHz - led out all pins Port A,B,C except PA9(TX) PA10(RX) PB2(BOOT1) PD0(OSC_IN) PD1(OSC_OUT) - internal power regulation, any Vin higher than 3.3V(recommended 5V or higher) will power the IC, provides 5V and 3.3V output -double sides ultra compact design, reset and boot0 built in, will save you space for you project -4 User Interface LED indicators, 2 of them are capable with PWM Rear View: |

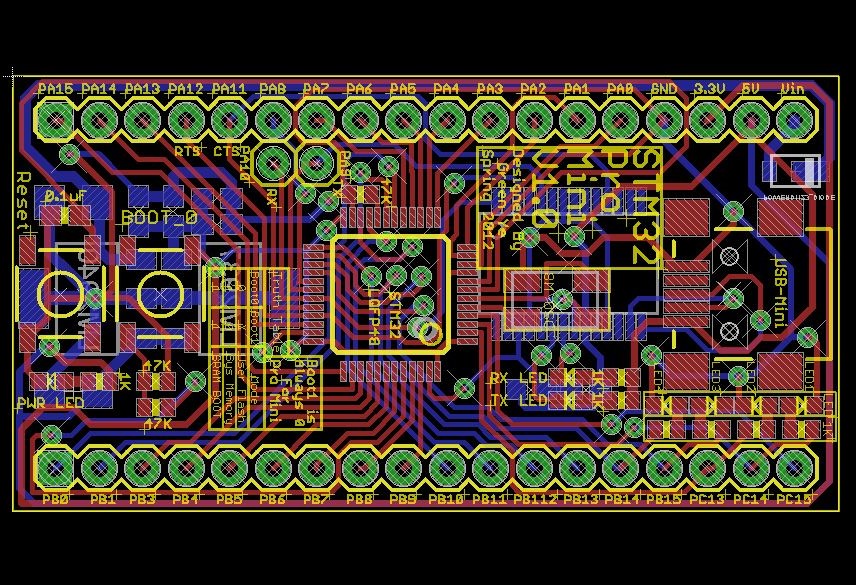

Layout |

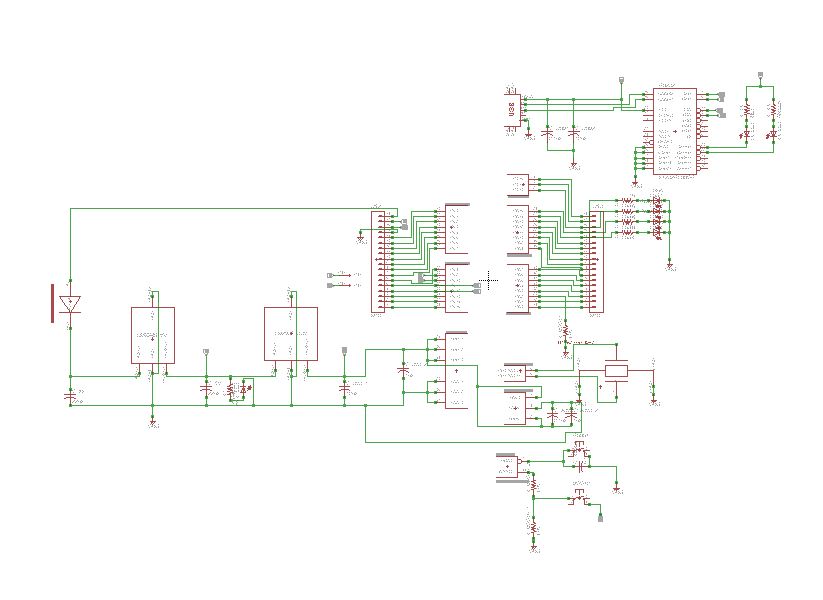

Schematic |
